Quantity :

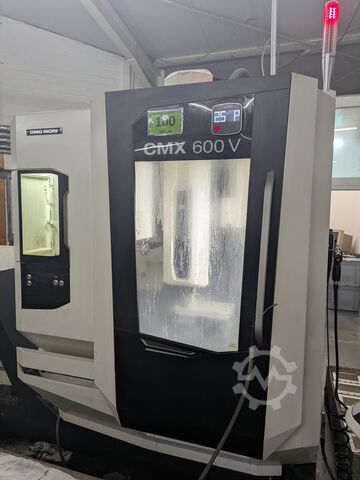

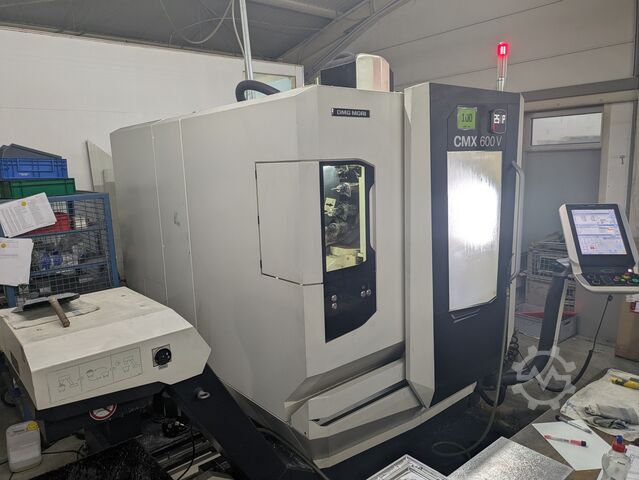

Machine data
- Machine type:
- 3-axis vertical machining center
- Manufacturer:
- DMG MORI
- Model:
- CMX 600 V
- Machine number:
- 1525000521A
- Year of construction:
- 2018
- Condition:
- ready for operation (used)
- Functionality:
- fully functional
- Operating hours:
- 4,468 h
Technical details
- Travel distance X-axis:
- 600 mm
- Travel distance Y-axis:
- 560 mm
- Travel distance Z-axis:
- 510 mm
- Spindle speed (max.):
- 12,000 rpm
- Number of slots in tool magazine:
- 60
TECHNICAL DETAILS
X-travel: 600 mm
Y-travel: 560 mm
Z-travel: 510 mm
Distance spindle to table: 120 - 630 mm
spindle
Spindle mount: SK 40
Max. spindle speed: 12,000 rpm
Power (40/100% DC): 13/9 kW
Torque (40/100% DC): 83/57 kW
Table
Workpiece weight: 600 kg
Table dimensions: 900 x 560 mm
Tool system & cooling
Number of tool positions: 60
IKZ pressure: 20 bar
Tool diameter: 80 / 130 mm
Tool length: 300 mm
Tool weight: 8 kg
Tool change time: 2.40 s
Chip-to-chip time: 6.70 s
Rapid traverse X / Y / Z: 30 m/min
Feed rates X / Y / Z: 30 m/min
MACHINE DETAILS
Machine weight: 5,000 kg
Installation area: approx. 5.5 m²
Dimensions: 2,757 x 1,990 x 2,935 mm
Dimensions with chip conveyor: 2,954 x 2,757 x 2,935 mm

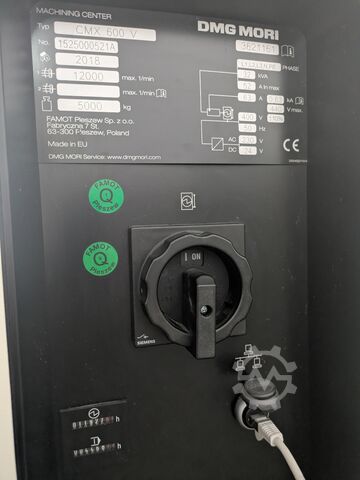

Electrical data
Connected load: 32 kVA
Max. current consumption: 52 A
Operating voltage: 400 V
Frequency: 50 Hz
Operating hours
Power-on time: 11,928 h
Spindle running time: 4,468 h
EQUIPMENT
- Renishaw tool probe
- 3D measuring probe
